I previously posted this mod as a concept after discovering that the CD changer of my 04 MPV and a Toyota Tacoma was the exact same unit. I discovered that it's the same unit in the Mazda6 once I bought a Mazda 6. This mod has been confirmed in my 2004 Mazda 6s wagon (USA w Bose and 6CD changer). The fellows at tacomaworld really deserve the credit for this aux mod, but below is my version of the DIY originally posted on their site here.

One discovery that was made by user throwinrox down below is that this mod doesn't seem to work with Samsung phones, at least not a Galaxy S3 or Glide. Confirmed phones that work include Moto G and iPhone. My guess is an output voltage difference of some sort.

First, remove the radio unit from the face panel. If you don't know how, time to do some searching.

Once you have it out, remove the 4 pink screws to detach the CD changer unit from the main assembly:


A label is visible on the unit detailing the removal of CD unit from assembly:


Once the CD unit is apart from the assembly, remove gold screws from the front and back:




Remove CD changer rear panel:



Flip CD unit open, being careful with the ribbon cable between inner assembly and board on case bottom:


Now focus on area where aux will be soldered in:


Cut and remove thin metal area of housing to allow better clearance for added wiring (RCA cable, 3.5mm aux cable, your choice. I used an RCA cable)

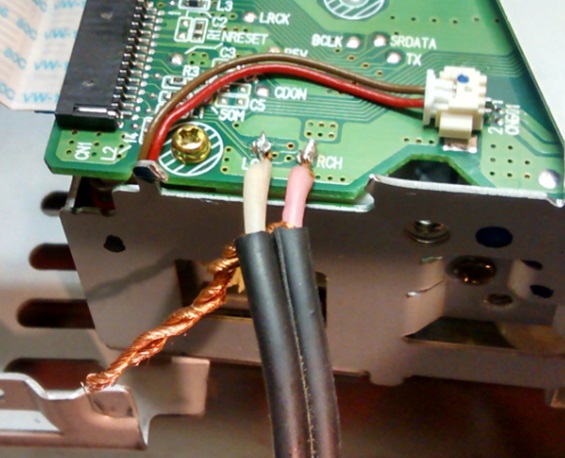

Solder L and R leads into 2 clearly labeled connections:


Once this is done, carefully connect the negative leads together and connect to screw on body. Making one cut in the outer body to bend housing outward is helpful for clearance when putting everything back together:


As you put everything back together, bend outer shell back together to lightly pinch and hold aux cable now coming out of the back of the CD assembly:



Route your new aux cable where you want it, insert any CD, then enjoy aux input once you connect the new cable to any aux source. Removing the cable from your aux source will play CD audio. Inserting the cable to an aux source will mute the CD audio and play only aux input.

Only mild downer with this mod, whenever the CD player is seeking without any actual audio being read, the aux input will be muted. All I've noticed is a 2-3 second pause as the one CD in my changer repeats itself every 80 minutes or so.


·
